Sealer

The Sealer is the perfect starting point if you are looking for a robust, reliable, and efficient coin cell and pouch sealing solution with a minimal footprint, with built in pump for pouch cell sealing and no compressed air supply requirement.

Home

Products

Sealer

3-IN-1 Multi-Purpose Sealer

The Sealer is a compact, glovebox-compatible system designed to reliably crimp coin cells and seal pouch cells in a single system. It can also be coupled with the Assembler and Autoloader Modules to further benefit from a semi or fully automated cell assembly and sealing process.

Compact coin cell sealer machine with a white and green body, control buttons, and an orange indicator light.

Front view of a pouch cell sealer machine with control panel, buttons, and safety features.

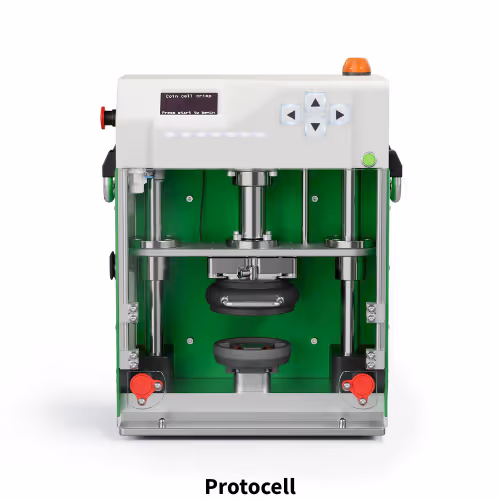

Front view of a compact industrial machine with a digital screen, control buttons, and mechanical components inside a transparent casing.

Interchangeable Dies

Interchangeable dies allow the Sealer to seal coin cells, pouch cells, and Protocells using the same platform. Dies can be changed quickly without specialist tools. A die change requires no specialist tools and typically takes only a matter of minutes to accomplish, allowing rapid technology scale-up from fundamental electrochemical research to applied industry relevant test cells.

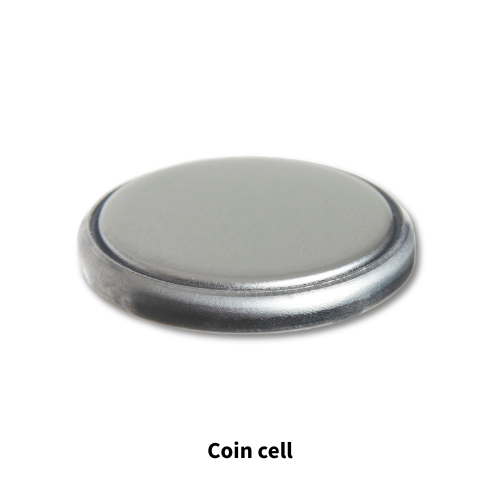

Silver coin cell battery viewed from an angled top side.

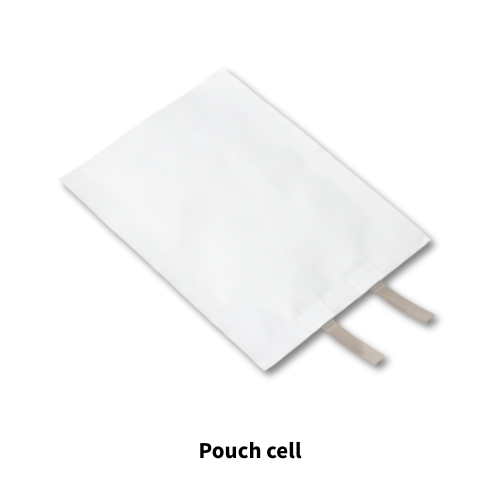

White pouch cell battery with two beige tabs on a white background.

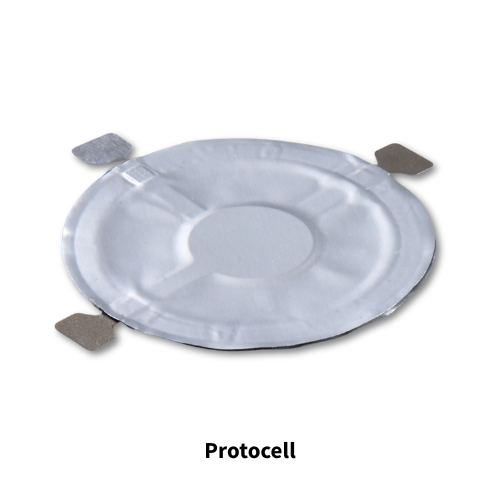

Transparent circular patch with three small offshoots, one tinted light orange.

Features

Functionality

Can seal coin cells, pouch cells and Protocells. Pouch cell vacuum sealing.

Compatibility

Ultra-compact design, 301mm x 190mm, and 301mm in height, can easily fit into a glovebox.

Versatility

Rapid die exchange for sealing different cell types, with a fully digital interface and control systems.

Flexibility

Digitally adjustable force, temperature and vacuum controls for consistent results. Vacuum <100mBar.

Specifications

Dimensions (WxHxD): 205 x 380 x 300 mm

Weight (KG): 12kg

Operating Voltage: 24 V

Peak & Nominal Power Draw: 100 W / 10 W

Ambient Temperature: 10-30°C

Sealer Configurations

The Sealer can be operated in standalone mode, or with the Assembler and Autoloader Modules,
to further benefit from a semi or fully automated cell assembly and sealing process.

CASS: Sealer + Assembler

By combining the Sealer and Assembler Module, you can automatically assemble and seal one coin cell at a time.

Save up to 30 hours of technicians time a week
Reduce training time from 12 months to 2 weeks
Use fewer cells to achieve more reliable results

Find out more

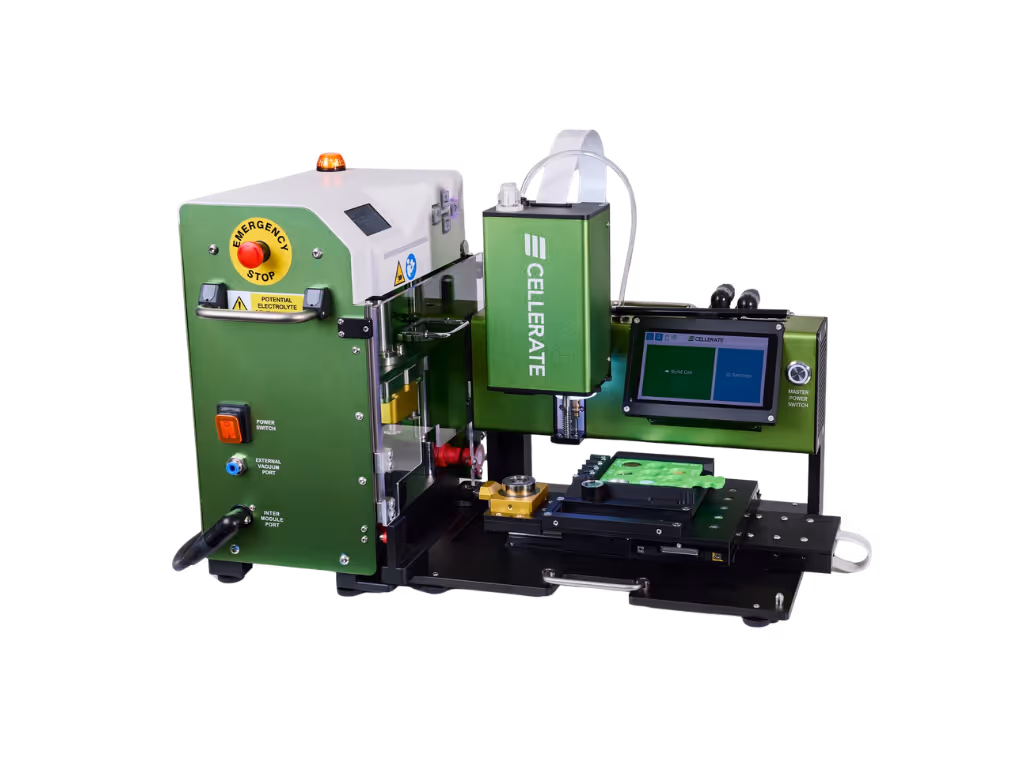

Green industrial machine with a touchscreen display and an emergency stop button, branded with 'Cellerate'.

CASS: Sealer + Assembler + Autoloader

The addition of the Autoloader module allows you to significantly scale production, unlocking the capability to reliably produce up to 100 prototype cells, completely unattended.

Reduce the time spent building coin cells up to 95%
Total setup time of around 1 hour for 100 cells
Scale up your automated cell assembly processes

Find out more

FAQs

What cells formats can you seal with the Sealer?

The Sealer can crimp coin cells and vacuum seal Protocells and single layer pouch cells. The Sealer can also pre-laminate electrodes for accurate single layer pouch assembly.

What other modules does the Sealer work with?

The Sealer can be operated in standalone mode, or with the Assembler and Autoloader Modules, to further benefit from a semi or fully automated cell assembly and sealing process. Find out more about the Assembler and Autoloader Modules.

What external services does the Sealer require?

The Sealer only requires a 'standard' 110-240V mains power source. No compressed air or external vacuum pump is required. The Sealer can also connect to a local network via wifi or ethernet.
